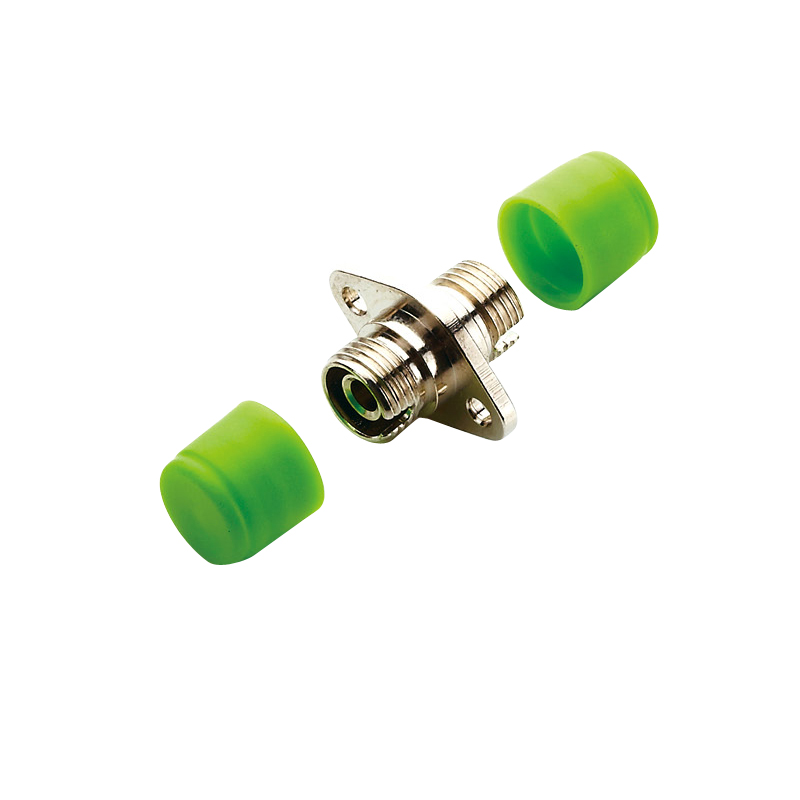

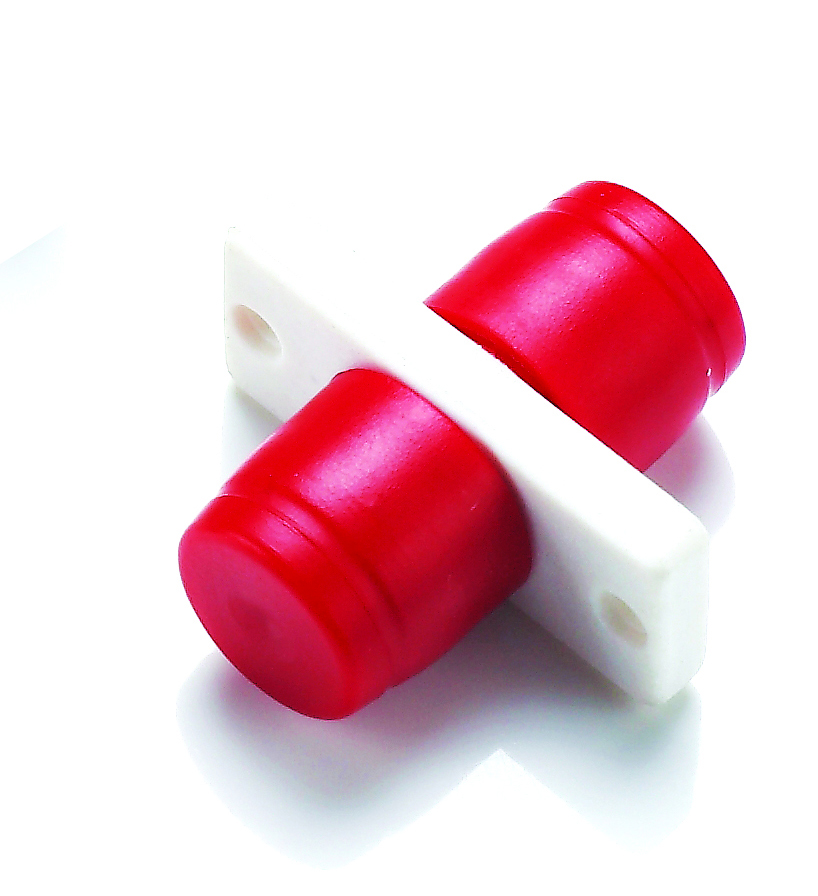

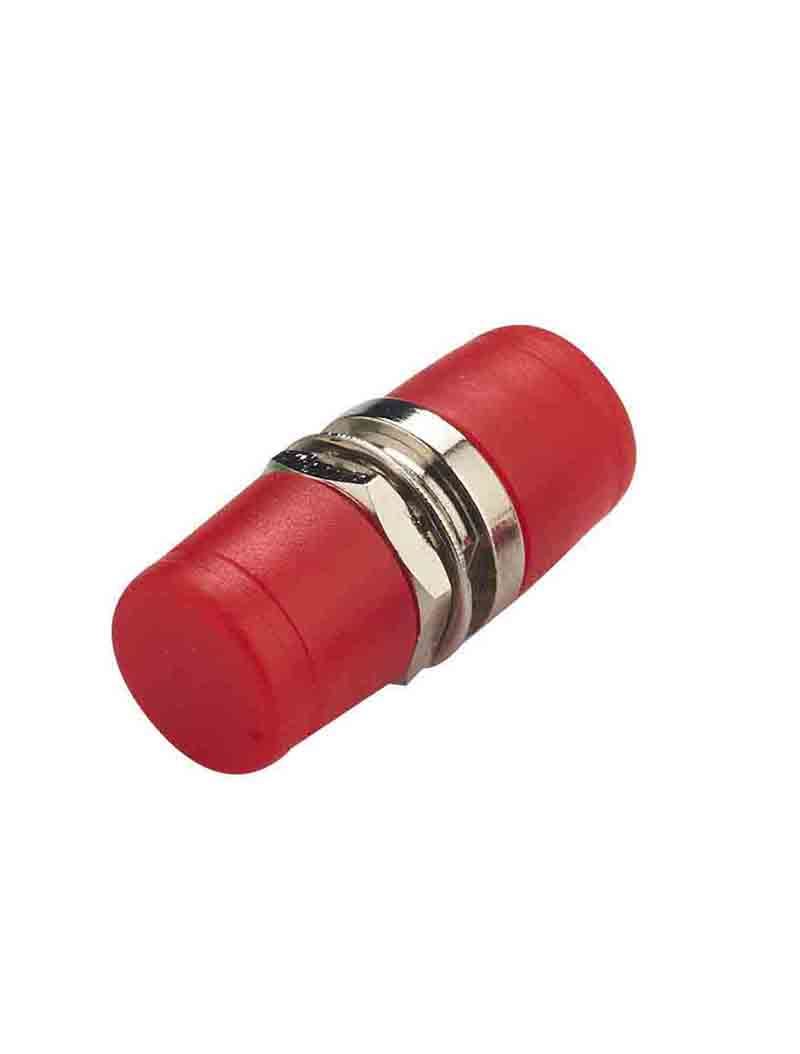

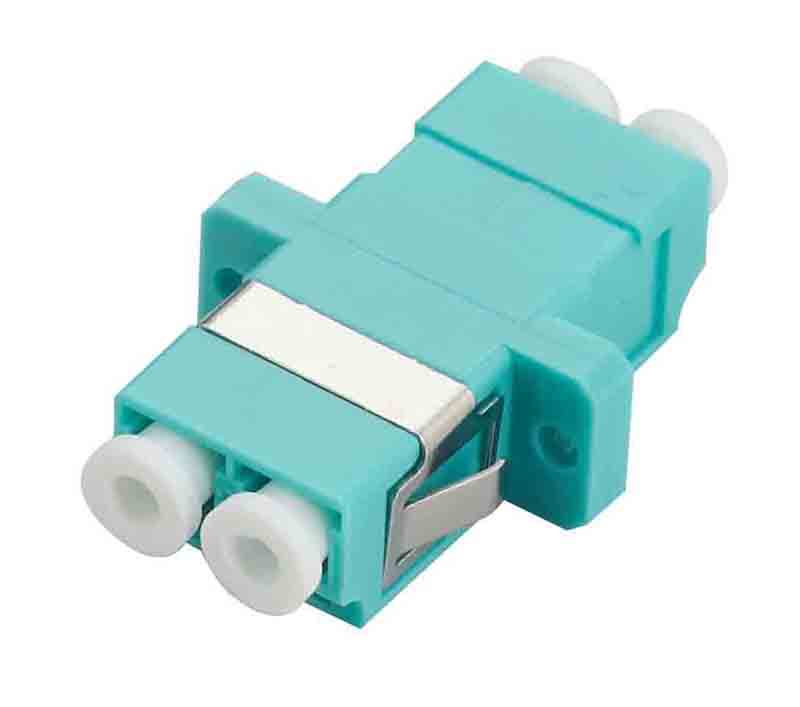

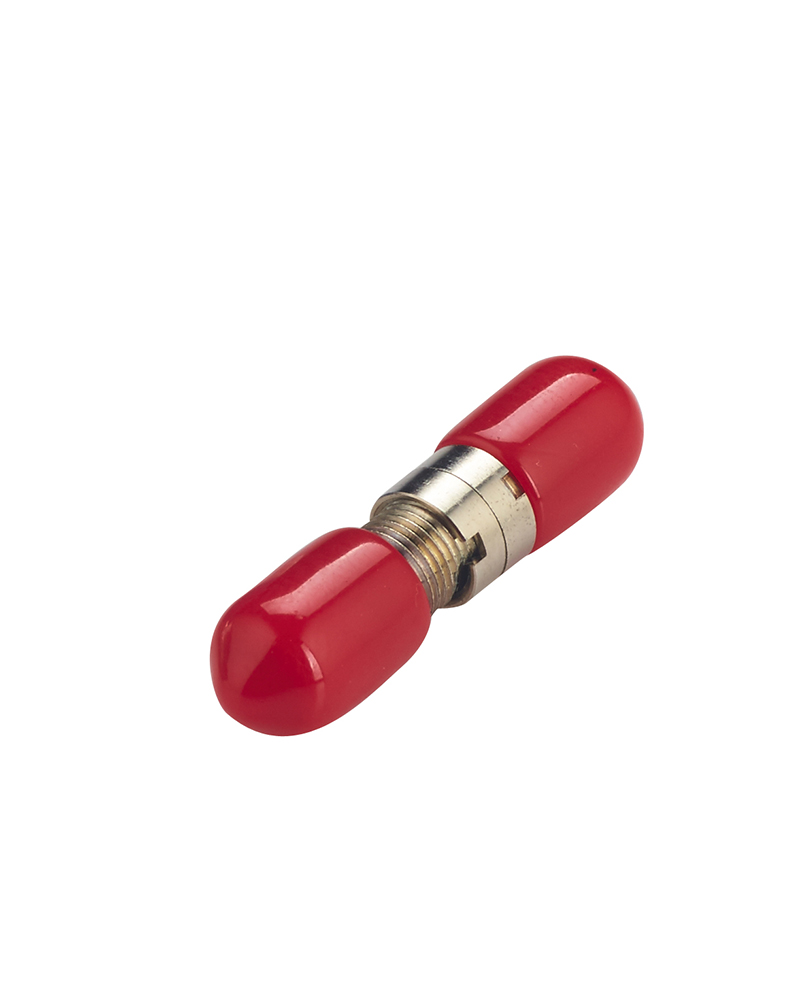

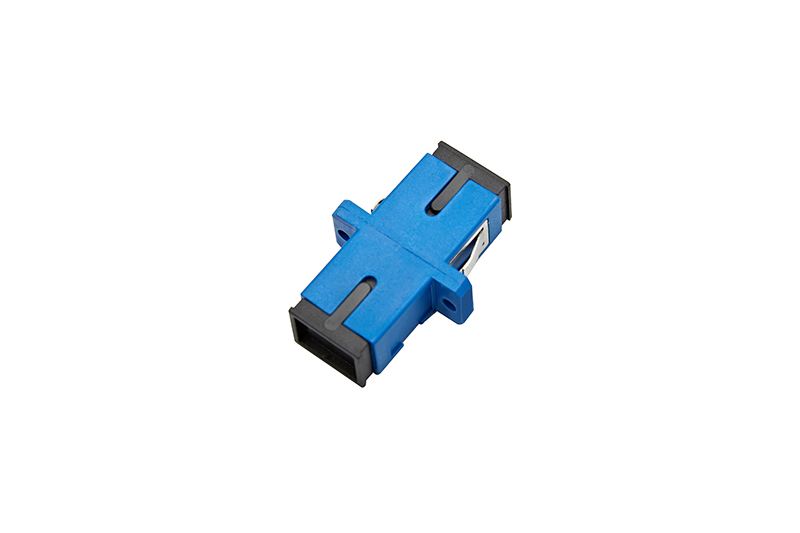

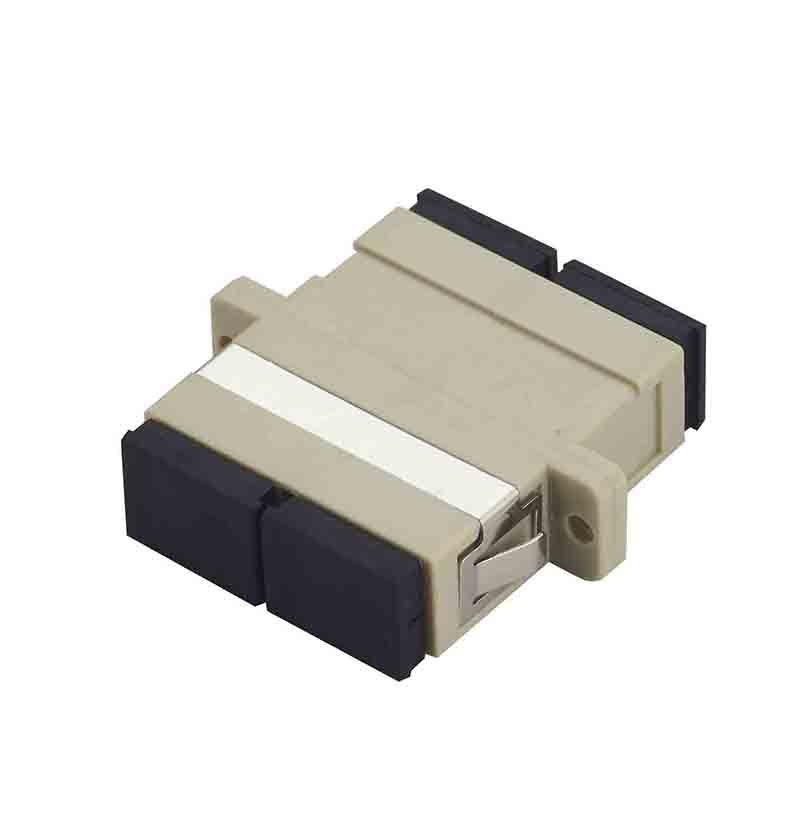

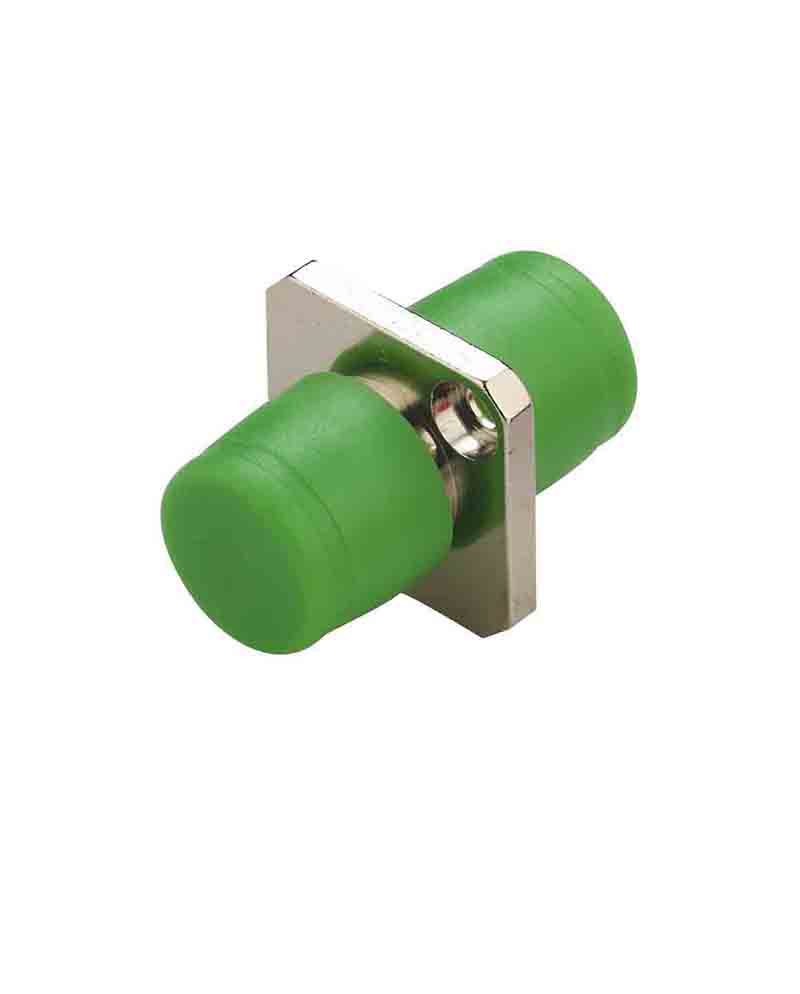

Normal Fiber Optic Adapter

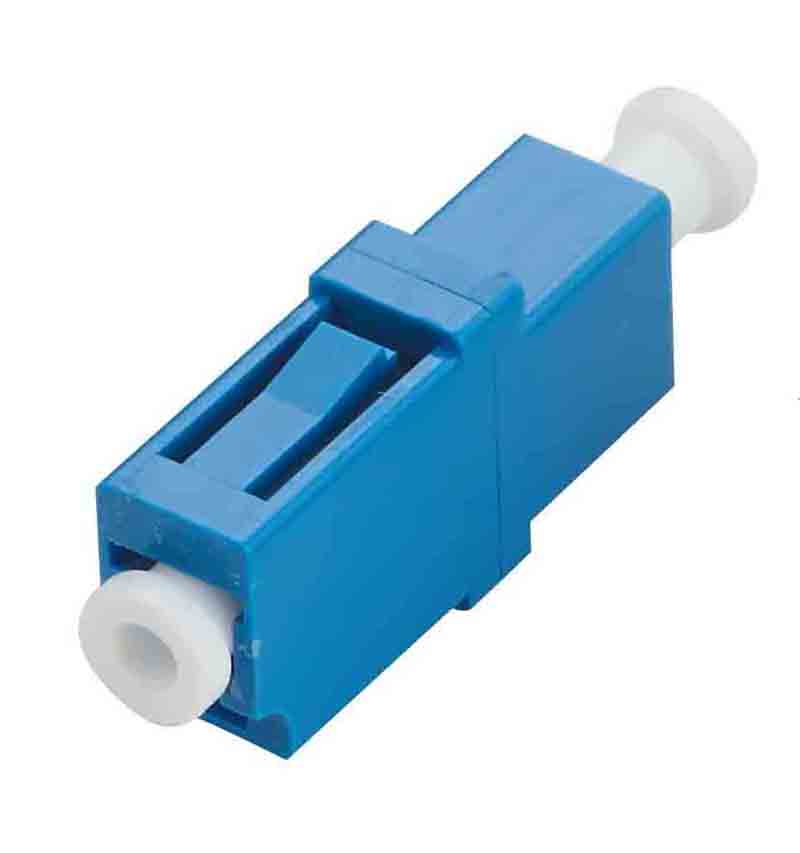

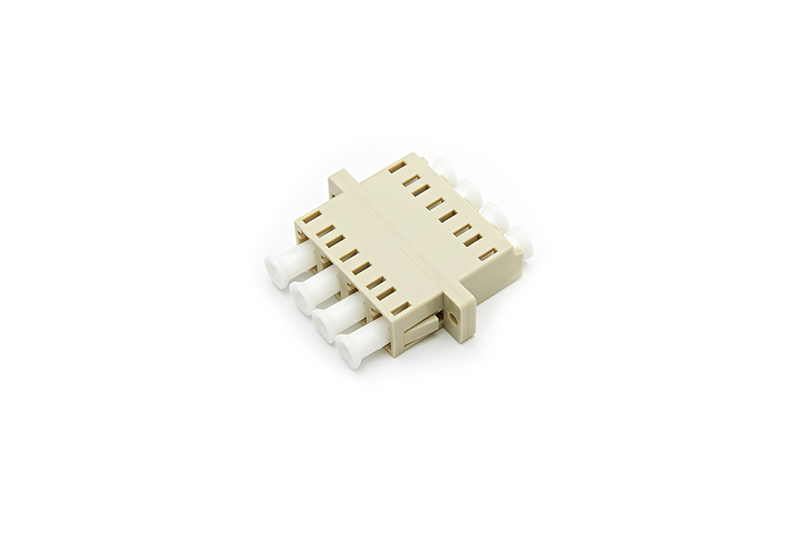

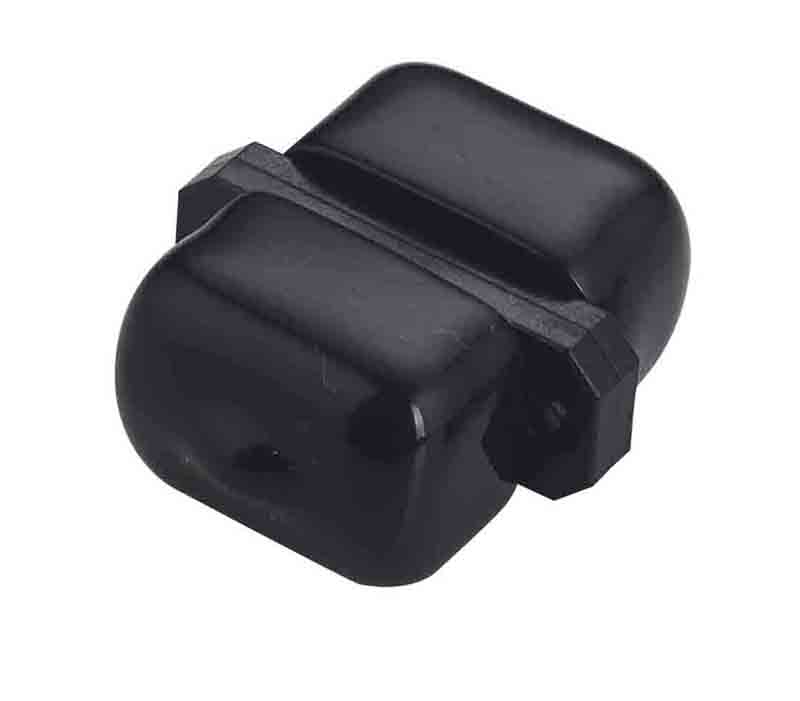

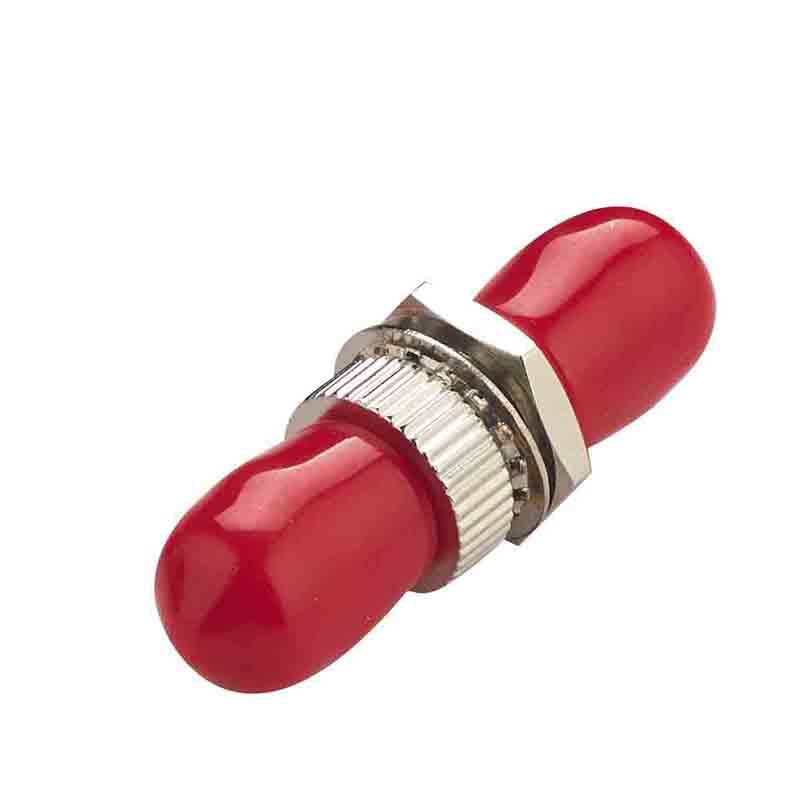

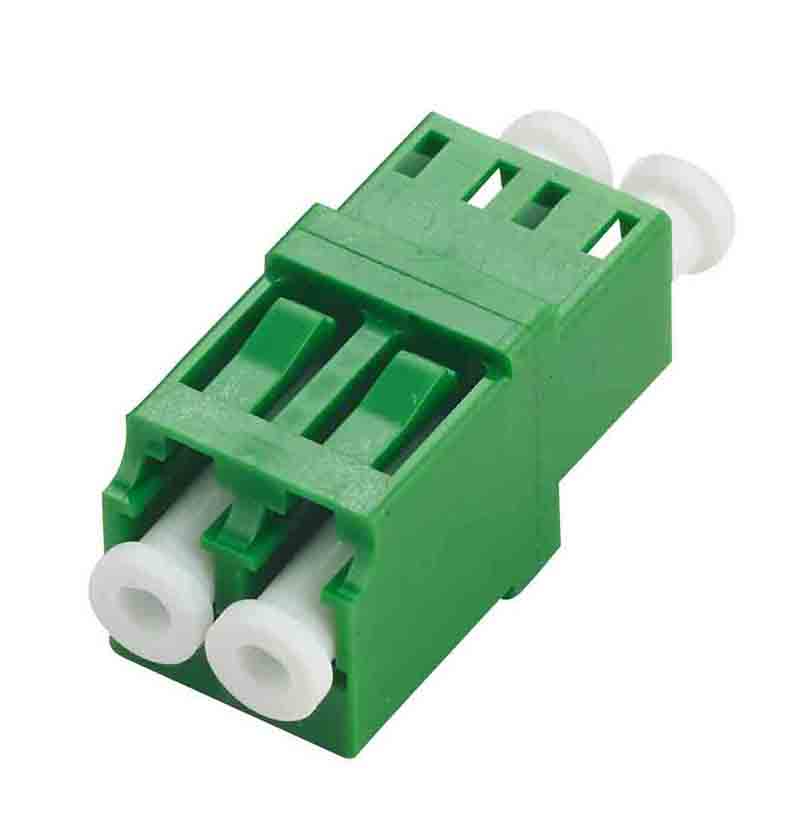

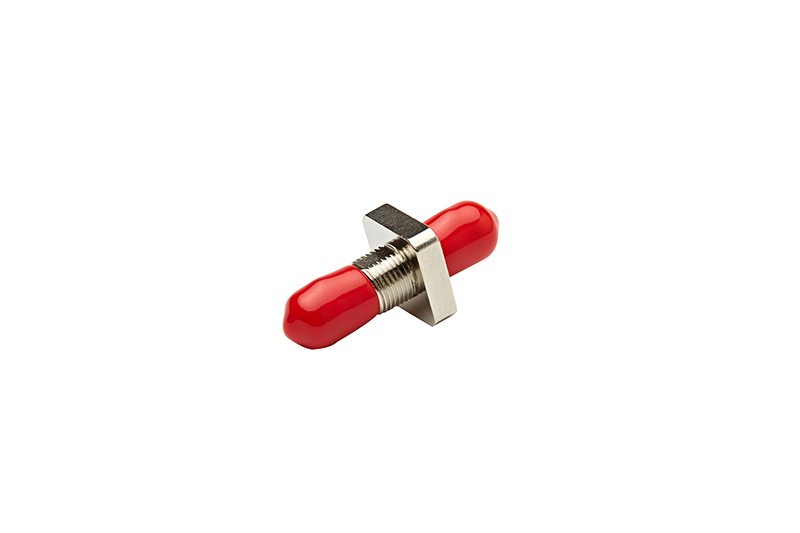

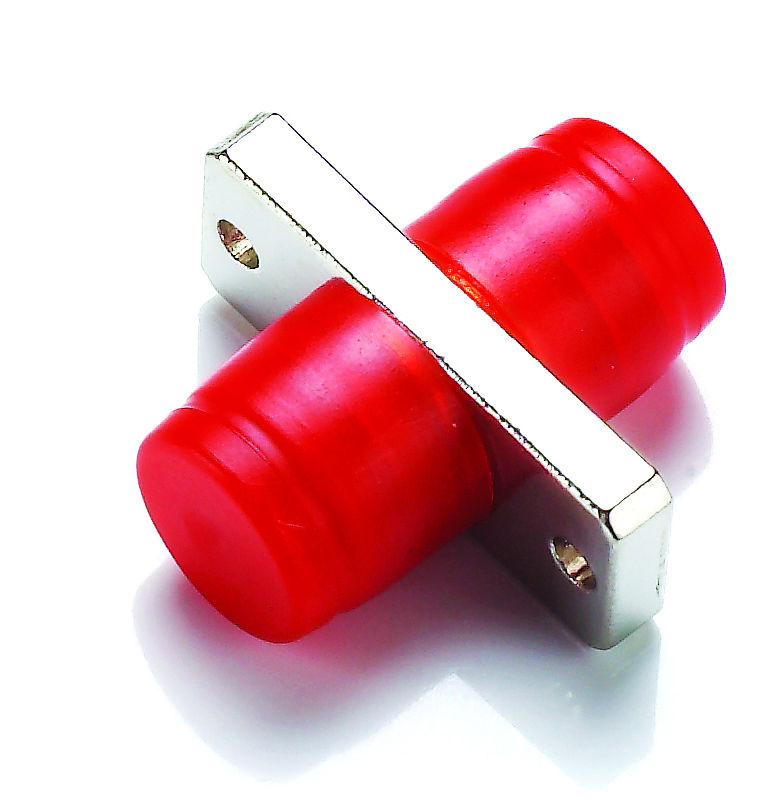

Adapter is a mechanical device designed to align fiber optic connectors. It contains the interconnect sleeve that holds two ferrules together. They are used to connect optical fiber connectors, such as FC, SC, LC, ST, MU, MTRJ, D4, DIN, MPO etc. They are widely used in optical fiber communications equipment, measuring appliance and so on, the performance is stably reliable.
Cable Color: ●Blue ●Beige ●Green ●Specify
Connector Type: ●LC ●SC ●FC ●ST ●D4 ●SMA ●MU ●MPO ●MTRJ ●E2000
Polishment: ●PC ●UPC ●APC
Appearance: ●Square ●Circular ●Rhombus ●Rectangular ●Auriculate ●Anotia ●Other
Mode: ●SM ●MM
Features: (1)Simplex, duplex versions available; (2)Low insertion loss and return loss; (3)High precision alignment; (4)Compact design Comply.
Applications: (1)Telecommunication system; (2)Optical communication networks; (3)CATV, FTTH, LAN; (4)Fiber optic sensors; (5)Optical transmission system; (6)Test equipment.
NOTE: We can provide specify adapter which required by customer.
|Wire Diameter (mm)||0.9mm, 2.0mm, 3.0mm|
|Insertion Loss (dB)||≤0.2||≤0.2||≤0.2||≤0.2|
|Return Loss (dB)||≥50||≥55||≥60||≥20|
|Interchangeability Loss (dB)||≤0.2|
Repeat Plug-pull Times
|Operating Temperature (℃)||-40~+85|
|Storage Temperature (℃)||-40~+85|
