Terminal Box

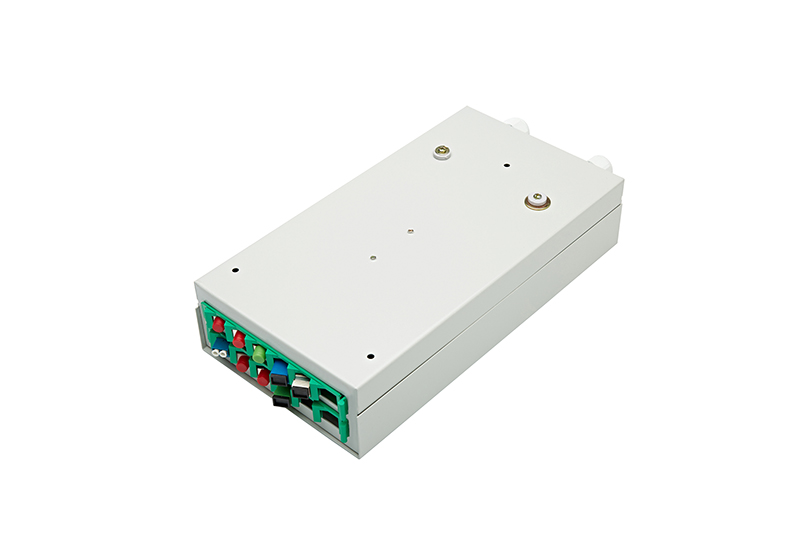

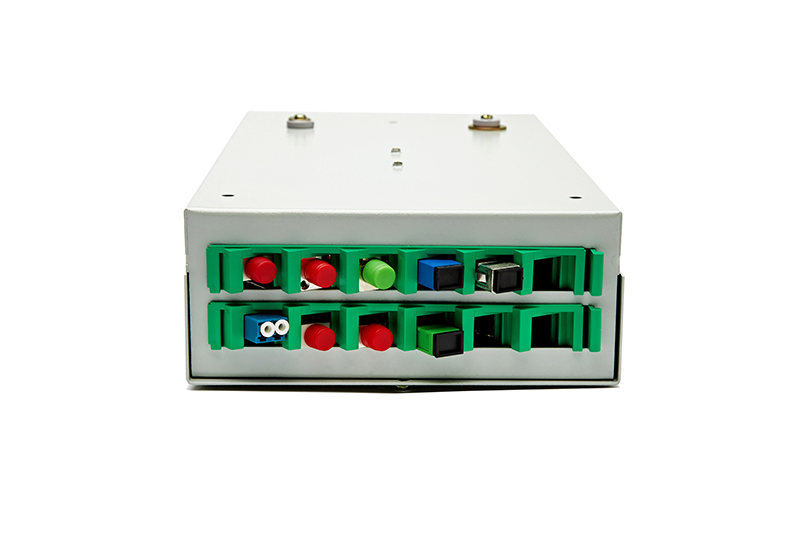

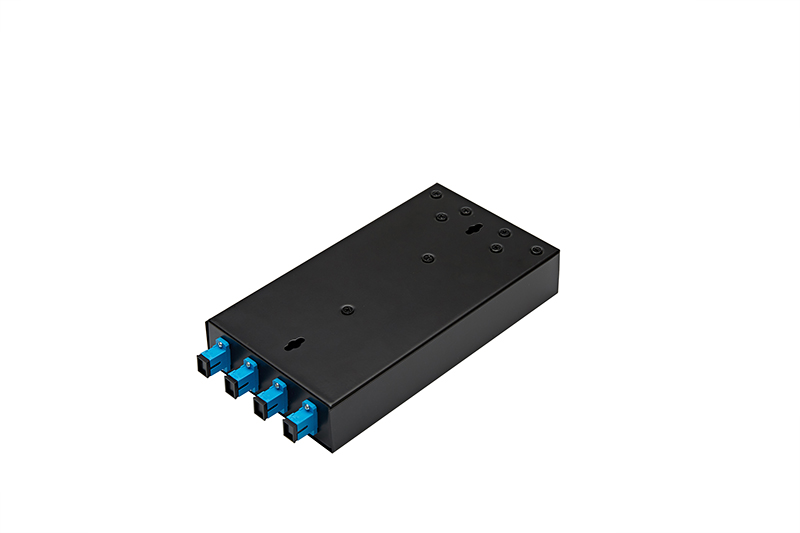

Optical Fiber Terminal Box - Desktop Type

Optical Fiber Terminal Box can be applied in the branch connection of optical cable termination, 19”standard structure, rack mounting, available for the installation of FC、SC、ST、LC adaptors.


Port:    ●1×2    ●1×4    ●1×8    ●1×16    ●1×64    ●2×4    ●2×8    ●2×16    ●Specify
Input Pigtail Style:    ●Bare Fiber    ●900um Loose tube    ●2.0mm Cable    ●3.0mm Cable
Input Connector:    ●None    ●FC/APC    ●FC/UPC    ●SC    ●ST    ●LC    ●E2000    ●Specify
Output Pigtail Style:    ●Bare Fiber    ●900um Loose tube    ●2.0mm Cable  ●3.0mm Cable
Fiber Length:    ●0.5m    ●1m    ●1.5m    ●2m    ●3m    ●4m    ●Specify
Output Connector:    ●None    ●FC/APC    ●FC/UPC    ●SC    ●ST    ●LC    ●E2000    ●Spcify
Package:●19”1U Rack   ●Specify

Description

Parameters

      Optical Fiber Terminal Box can be applied in the branch connection of optical cable termination, 19”standard structure, rack mounting, available for the installation of FC、SC、ST、LC adaptors.
       Features: (1)Low insertion loss; (2)Low PDL; (3)Compact design; (4)Good channel-to-channel uniformity; (5)Wide operating wavelength: from 1260nm to 1650nm; (6)Wide operating temperature: from -40℃ to 85℃; (7)High reliability and stability.
       Applications: (1)FTTX systems; (2)PON networks; (3)CATV links; (4)Optical signal distribution.
       NOTE: We can provide specify terminal box which required by customer.

Performance Specifications

Dimension Max Capacity (Cores) Remark
430×300×1U 12

The case body is made from cold rolled steel sheet,

 and the surface use the technology of electrostatic spraying.

  Available for the installation of FC,SC,ST,LC etc. adaptors.

24
48
430×300×2U 48
