Fast Connector

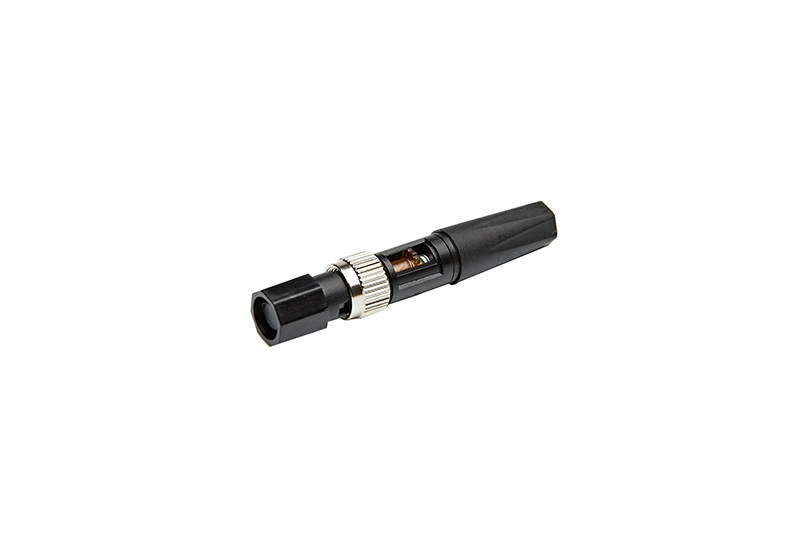

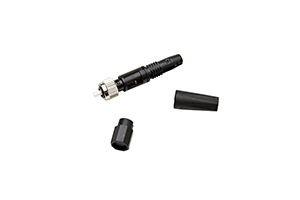

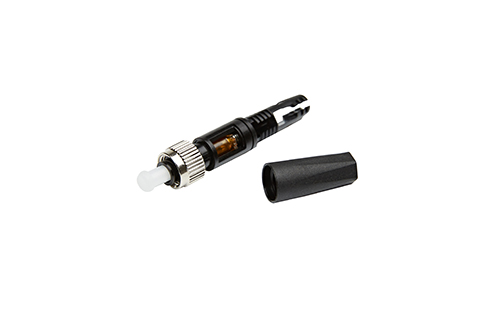

FC Field Assembly Optical Connector
Field Assembly Optical Connector can be divided into different types which according to different classification method: for the difference of transmission medium there can be divided into single-mode fiber and multi-mode fiber connector; for the difference of structure there can be divided into FC, SC, ST, LC, D4, DIN, MU, MTRJ and other types; for the difference of connector pin endface there can be divided into PC, UPC and APC; for the difference of fiber core there can be divided into single core and multi-cores.
Cable Color: ●Blue ●Beige ●Green ●Specify
Connector Type: ●FC ●SC
Polishment: ●PC ●UPC ●APC
Fiber Core Type: ●SM ●MM
Realization: ●Straight through type●Embedded type
Description
Parameters
Applications: (1)Telecommunication system; (2)Optical communication networks; (3)CATV, FTTH, LAN; (4)Optical transmission system.
NOTE: We can provide specify field assembly optical connector which required by customer.
Performance Specifications
| Item |
Parameter |
| Average Insertion Loss (dB) | 0.3（1310nm, 1490nm, 1550nm） |
| Return Loss (dB) | UPC≥50, APC≥60 |
| Bare-fiber Fastening Force (N) | >5 |
| Compact-cladding Tight Clamping Force (N) | >10 |
| Tensile Strength (N) | >50 |
| Work Temperature (℃) | -40~+85 |
| Operate Time | about 10 seconds (Not include the time-consuming of Optical fiber processing) |
| Online Tensile Test（20N） | △IL≤0.2dB △RL≤5dB |
| Mechanical Durability Performance（500 Times） | △IL≤0.2dB △RL≤5dB |
| Drop to groud Test（4 meters each time , totally 3 times） | △IL≤0.2dB △RL≤5dB |
