Patch Cord

Special Optical Patch Cord

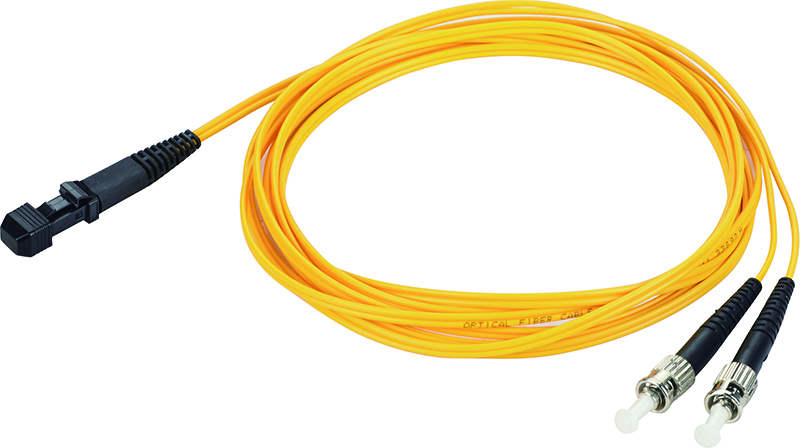

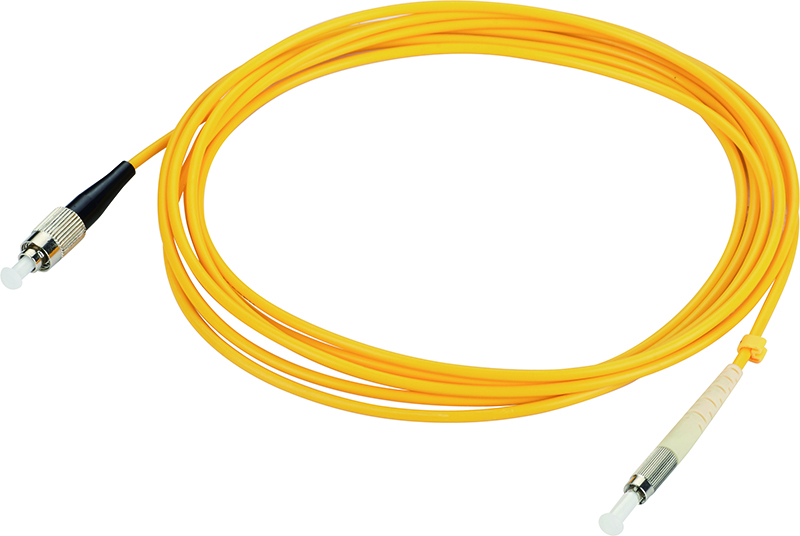

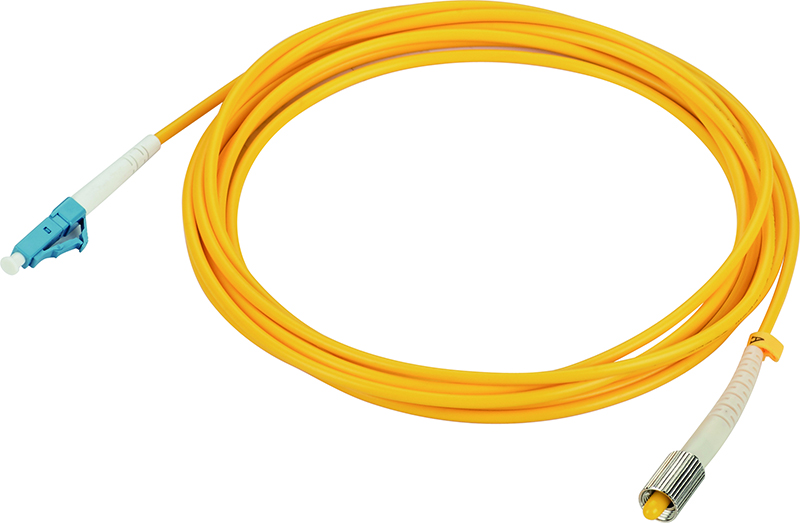

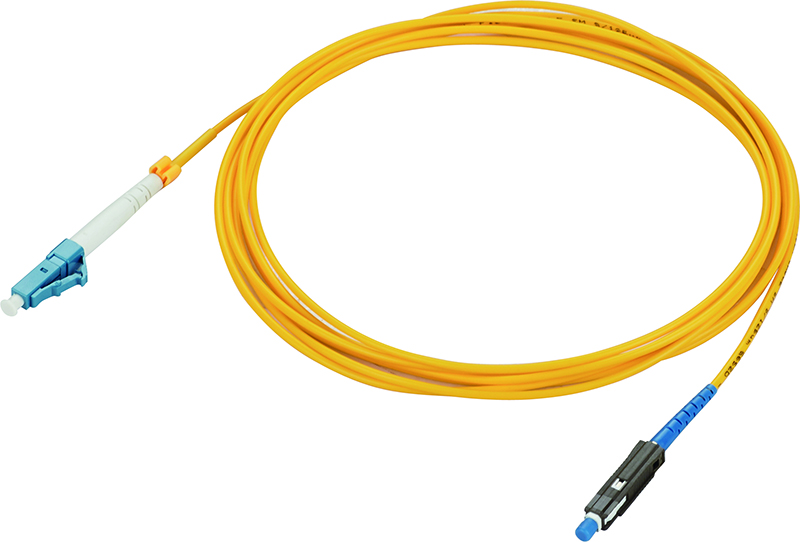

Tianzhou Optic's optical fiber patch cord(fiber jumper) which called a fiber optic patch cord is a length of fiber cabling fitted with LC, SC, FC, ST, MTRJ or other fiber connectors at each end. Patch cord also come in hybrid varieties with one type of connector on one end and another type of connector on the other end. Patch cord is used to connect end devices or network hardware to the structured cabling system.


Cable Color:    ●Yellow    ●Orange    ●Aqua    ●Specify

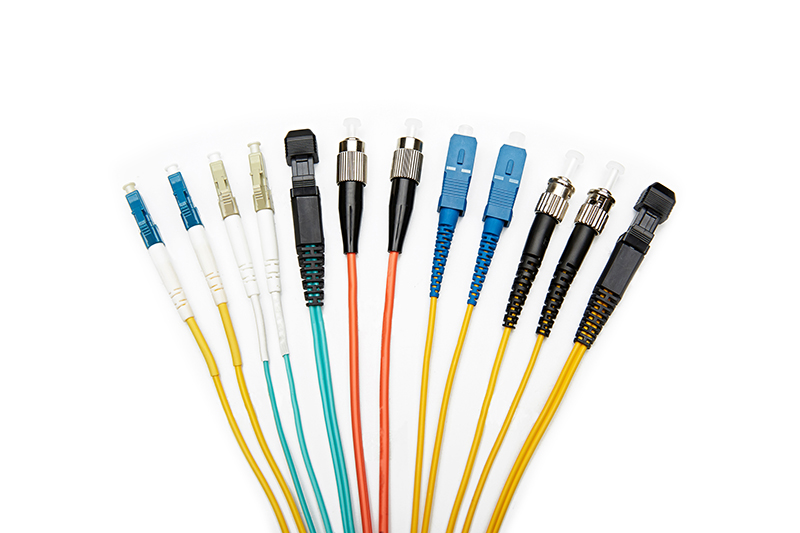

Connector Type:    ●LC    ●SC    ●FC    ●ST    ●D4    ●SMA    ●MU    ●MPO    ●MTRJ
Polishment:    ●PC    ●UPC    ●APC
Fiber Type:    ●SM 9/125 G652D    ●SM 9/125 G657A    ●MM 50/125 (OM2)    ●MM 50/125 (OM3)                                            ●MM 50/125 (OM4)    ●MM 62.5/125 (OM1)
Cable Diameter:    ●0.9mm    ●2.0mm    ●3.0mm
Cable Length:    ●0.5m    ●1.0m    ●2.0m    ●3.0m    ●Specify
Cable Type:    ●Simplex    ●Duplex    ●Water-proof    ●Break-out    ●Ribbon    ●Bundle
Cable Jacket:    ●LSZH    ●PVC    ●OFNR    ●Specify

Description

Parameters

        Tianzhou Optic's optical fiber patch cord(fiber jumper) which called fiber optic patch cord is a length of fiber cabling fitted with LC, SC, FC, ST, MTRJ or other fiber connectors at each end. Patch cord also come in hybrid varieties with one type of connector on one end and another type of connector on the other end. Patch cord is used to connect end devices or network hardware to the structured cabling system.

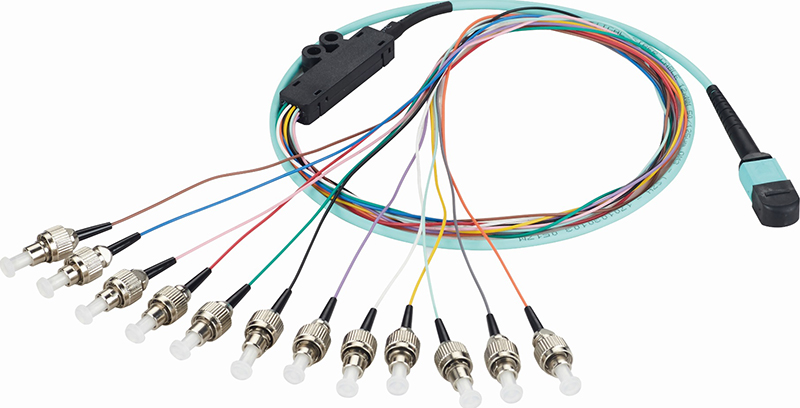

        Features: (1)Constructed from high quality connectors and standard fibers; (2)4, 6, 8, 12, 24, 48, 64, 128 fibers optional; (3)Applicable connector: FC, SC, ST, LC, MTRJ and etc; (4)Cable material: PVC, OS1, OM1, OM2 or OM3 optional; (5)Singlemode or multimode available; (6)Cable size: Φ0.9mm, Φ2.0mm, Φ3.0mm.
        Applications: (1)Telecommunication system; (2)Optical communication networks; (3)CATV, FTTH, LAN; (4)Fiber optic sensors; (5)Optical transmission system; (6)Test equipment.
        NOTE: We can provide specify patch cord which required by customer.

Performance Specifications

Parameter FC, SC, LC ST, MU MTRJ
SM MM SM MM SM MM
UPC APC UPC UPC UPC UPC UPC
Operating Wavelength (nm) 1310,1550 850,1300 1310,1550 850,1300 1310,1550 850,1300
Insertion Loss (dB) ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.2 ≤0.2 ≤0.2
Return Loss (dB) ≥50 ≥60 ≥35 ≥50 ≥35 ≥50 ≥35
Repeatability Loss (dB) ≤0.1
Interchangeability Loss (dB) ≤0.2
Repeat Plug-pull Times ≥1000
Tensil Strength (N) ≥100
Durability Loss (dB) ≤0.2
Operating Temperature (℃) -40~+85
Storage Temperature (℃) -40~+85

1、Specifications may change without notice.

2、Above specification are for device without connector.

APC and UPC Endface

Mode number Single-Mode Multi-Mode
Length (10.50±0.05)mm (10.50±0.01)mm
Outer-diameter (2.4990±0.0005)mm (2.4990±0.0001)mm
Inner-diameter (0.125+0.001/-0)mm (0.126-0.129)mm
Concentricity ≤1.0 ≤4.0
